CNC Machining Services for Hydraulic Manifolds: Why Internal Burrs Matter

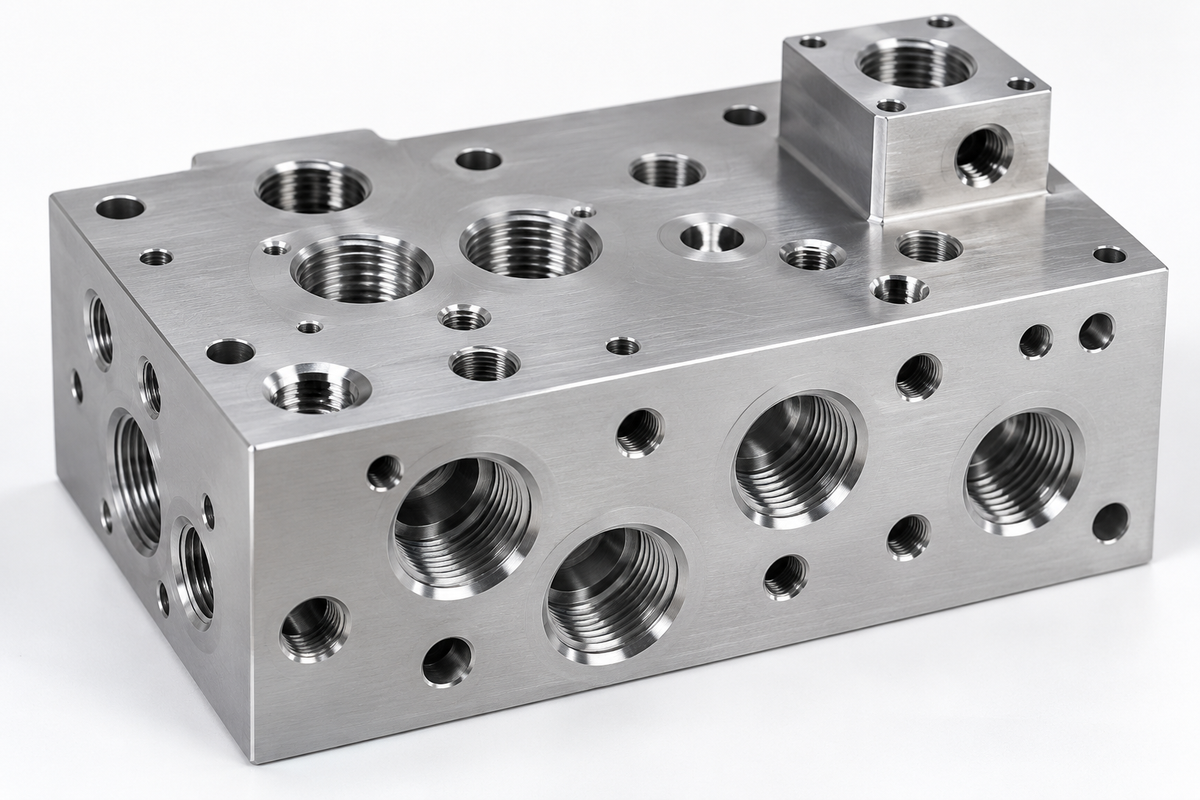

A hydraulic manifold may look perfectly machined on the outside, but problems can hide inside its oil passages.

When two drilled holes intersect, small burrs can form where the cutting tool exits into another passage. If these burrs break loose during operation, they may contaminate the hydraulic fluid and interfere with valves or other sensitive components.

This is why CNC machining services for hydraulic manifolds require more attention than simply achieving accurate hole positions and thread dimensions.

Why are Cross-Drilled Holes Difficult to Machine?

Hydraulic manifolds often contain multiple intersecting passages that direct fluid between ports and valves.

The difficulty comes at the intersections. Deep holes and limited tool access make internal burrs harder to remove and inspect than those on external edges.

Even when every hole meets its dimensional tolerance, remaining burrs can still affect the finished component.

How Can Internal Burrs Be Controlled?

Effective burr control begins during CNC machining, not just during final cleaning.

Suitable drill geometry, cutting parameters, and machining sequence can help reduce burr formation. Where accessible, intersecting passages may require additional deburring operations.

After machining, internal channels should be cleaned to remove loose chips and particles. Inspection and cleanliness acceptance criteria should reflect the hydraulic system's requirements.

For complex manifold designs, considering hole accessibility during the DFM review can also make deburring easier and reduce manufacturing costs.

Custom CNC Machining Services at XY-GLOBAL

XY-GLOBAL provides custom CNC machining services for precision metal components, including complex parts with multiple holes, threaded features, and tight dimensional requirements.

Our engineering team can review manifold drawings to evaluate machining accessibility, critical tolerances, and deburring requirements before production.

Need a quotation for custom hydraulic manifold blocks? Send us your drawings, material specifications, and quantities for a manufacturing feasibility review.

Contact XY-GLOBAL to discuss your CNC machining project.
