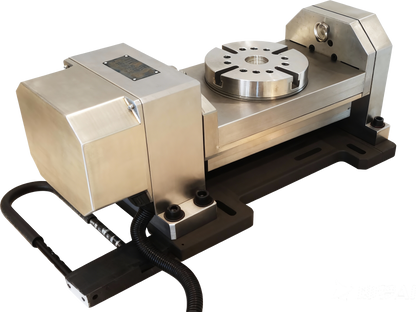

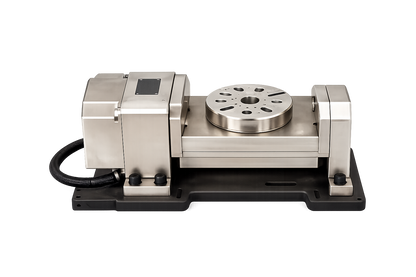

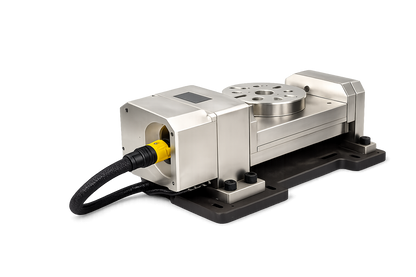

4-Axis CNC Rotary Table
We specialize in high-precision CNC machining and die casting, supporting tolerances down to ±0.01 mm.
Our ISO 9001 and ISO 13485 certified facilities provide in-house inspection, engineering support, and DFM review to ensure consistent quality.
We support fast prototyping to low- and mid-volume production, with strict confidentiality for all customer designs and data.
-
Contact Us
Product Features
Precision Worm Drive: High-tensile alloy wheels and hardened steel gears ensure long-term indexing accuracy and wear resistance.
Dual-Lead System: Allows easy backlash adjustment to maintain tight tolerances even after years of heavy use.
Dual Clamping Options: High-torque pneumatic or hydraulic braking systems provide robust rigidity during heavy-duty cutting.
High-Rigidity Casting: Premium Meehanite cast iron body offers superior vibration dampening and thermal stability.
Compact & Lightweight: Space-saving design for easy installation and a larger work envelope on your machine table.
Versatile Integration: Standard T-slots and precision center bore for easy mounting of chucks, faceplates, or tailstocks.
Typical Product Specifications
| Technical Data | Standard Value |
| Table Diameter | Ø 210 / Ø 250 mm |
| Center Height | 160 / 180 mm |
| Center Bore Diameter | Ø 40H7 mm |
| Table Speed | 25 ~ 41.6 rpm |
| Indexing Accuracy | ±15" arc-sec |
| Repeatability | 4" arc-sec |
| Clamping Torque (Hydraulic) | 500 ~ 700 N·m |
| Allowable Workload (Horizontal) | 150 ~ 200 kg |
| Allowable Workload (Vertical) | 75 ~ 100 kg |
| Total Weight | 80 ~ 110 kg |
When to Choose a 4th Axis Rotary Table
Choose a 4th Axis Rotary Table If:
Focus on Efficiency & Versatility for cylindrical or multi-sided parts.
- Multi-Sided Indexing: Your primary goal is to machine multiple faces of a part without manual re-clamping.
- Cylindrical Features: Your parts require radial drilling, engraving, or spiral groove milling along a central axis.
- Low Entry Barrier: You want to significantly boost productivity and reduce setup errors without the heavy investment of a full 5-axis system.
- Prismatic Geometry: Your workpieces are relatively standard and do not feature complex, non-linear organic surfaces.
When to Choose a 5th Axis Rotary Table
Choose a 5th Axis Rotary Table If:
Focus on Complexity & Precision for high-end industrial applications.
- Complex Freeform Surfaces: Your projects involve turbine blades, aerospace impellers, or medical implants with intricate 3D geometries.
- "One-and-Done" Machining: You need to complete 5-sided machining in a single setup to eliminate cumulative positioning errors and maximize spindle uptime.
- High-Precision Industries: You operate in sectors requiring extreme tolerances and superior surface finishes, such as Aerospace, Medical, or High-Performance Automotive.
- Full Automation Ready: You aim to implement "Lights-Out" manufacturing with robotic loading, where minimizing physical intervention is critical for maximum ROI.
Single-Setup Multi-Face Machining for Efficient and Effortless Precision Engineering
- Superior Drive Tech: Roller Gear and Zero-backlash Direct Drive (DD) options ensure maximum stability and high-quality finishes.
- High Torque & Load: Engineered for heavy-duty components, delivering rugged rigidity and long-term reliability.
- Seamless Integration: Fully customizable configurations to match your specific CNC setup and controllers.
- Industry Trusted: Proven performance in Medical and optical high-precision engineering worldwide.
- Full Technical Support: Expert guidance from installation to maintenance, ensuring your production never stops.
