Precision Defined: The Critical Role of Medical Device Precision Machi

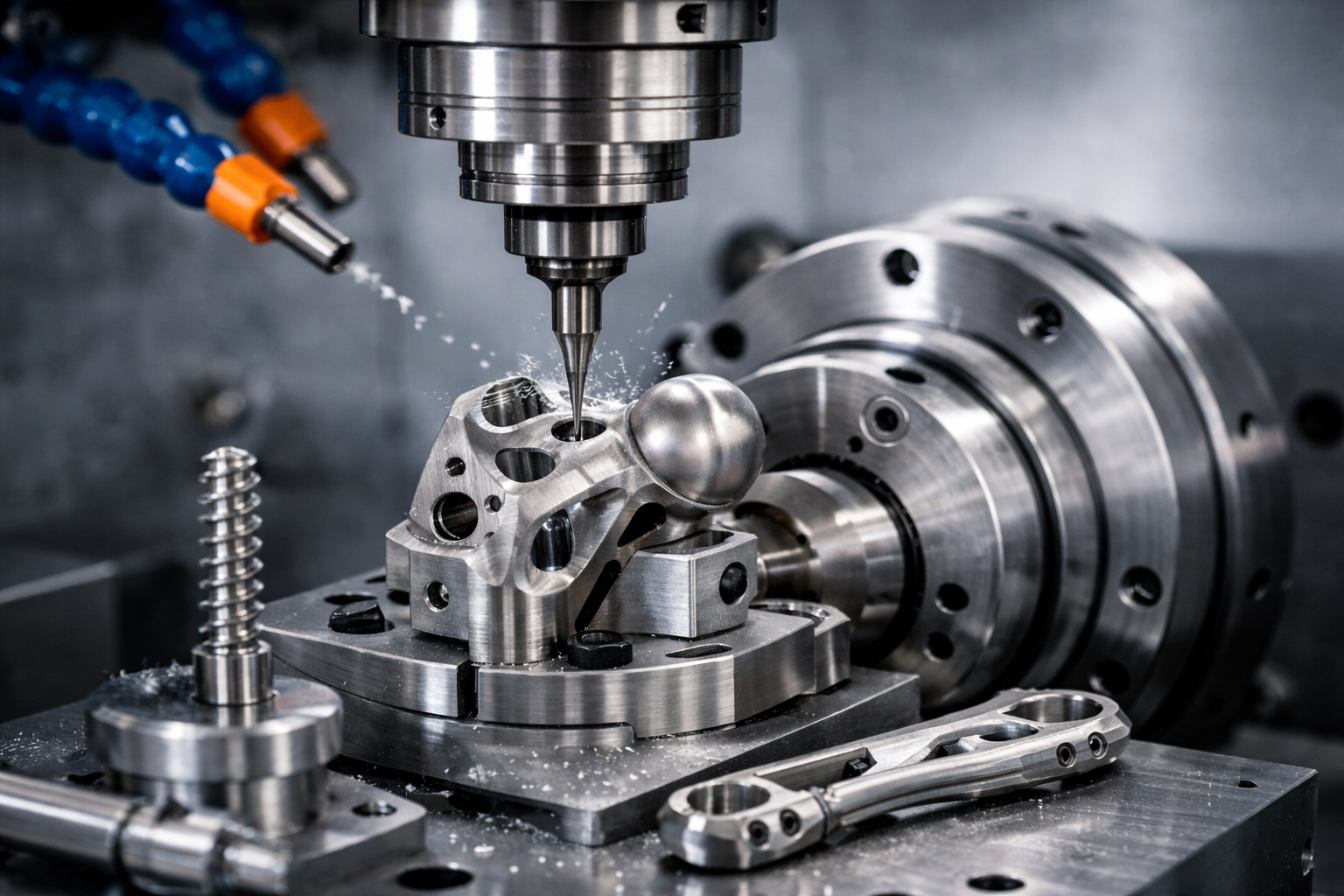

The quality of medical components is a matter of life and death; here, precision is the only standard. As the backbone of modern healthcare manufacturing, medical device precision machining transforms complex designs into critical hardware. From microscopic bone screws to intricate ventilator valves, precison machining ensures every device performs with absolute reliability when it matters most.

Why Precision Machining Is Important for Medical Devices?

The medical sector is unique because it leaves zero room for error. Medical device CNC machining has become the industry standard for several critical reasons:

1. Extreme Geometrical Complexity

Modern implants and surgical tools are no longer simple shapes. They often feature organic geometries designed to mimic human anatomy or integrate with bone tissue.Achieving these intricate contours requires the high-level dexterity of CNC machining for medical devices.

2. Biocompatibility and Surface Integrity

It’s not just about the shape; it’s about the surface. A microscopic burr or a rough patch on an implant can lead to infection or device rejection. Precision machining for medical devices allows for controlled surface finishes that meet the stringent Ra (roughness average) requirements necessary for sterilization and biocompatibility.

3. Strict Regulatory Compliance

Medical hardware must be traceable and consistent. The repeatability offered by CNC machining in medical device manufacturing ensures that the 1st part and the 1,000th part are identical, meeting the rigorous standards set by bodies like the FDA and EMA.

What Technologies and Equipment Precision Machining Need for Medcial Devices

To achieve the "impossible" tolerances required by neurosurgeons and orthopedists, manufacturers utilize state-of-the-art machinery. Precision medical device machining relies on a synergy of advanced hardware:

5-Axis CNC Milling: This is the gold standard for complex components. 5-axis machines can approach a part from every conceivable angle, allowing for the creation of complex undercuts and compound curves in a single setup, which significantly reduces cumulative error.
Swiss-Type Lathes: Ideal for long, slender parts like bone needles and catheters. The sliding headstock design provides maximum support near the cutting tool, enabling tolerances in the micron range.
Wire EDM (Electrical Discharge Machining): Used for extremely hard metals or parts with sharp internal corners that a traditional drill cannot reach.
Multi-Tasking Centers: Combining milling and turning capabilities, these machines ensure perfect concentricity for cylindrical medical components.

Materials Science: The Elements of Life

In medical device precision machining, the material choice is as vital as the machining process itself. The materials must be durable, corrosion-resistant, and, most importantly, biocompatible.

Material Category	Specific Grade	Typical Application	Key Characteristics
Titanium	Ti-6Al-4V (Grade 5)	Bone screws, joint replacements	The "Gold Standard" for implants. Excellent strength-to-weight ratio and osseointegration.
Stainless Steel	316LVM (Vacuum Melt)	Vascular stents, surgical tools	Enhanced corrosion resistance and high purity; non-magnetic and medical-grade biocompatible.
Cobalt-Chrome	CoCrMo	Artificial knees and hips	Exceptional wear resistance and hardness; ideal for articulating surfaces in joints.
High-Perf Polymers	PEEK	Spinal cages, dental implants	Radiopaque (invisible on X-rays), non-metallic, and mimics the modulus of human bone.
Shape Memory	Nitinol (NiTi)	Stents, guidewires	A Nickel-Titanium alloy that returns to its original form after deformation.

Classification of Precision Machined Medical Products

The applications of medical device CNC machining are vast, generally falling into three main categories:

Implantable Devices: Orthopedic plates, bone screws, dental abutments, and pacemaker housings.
Surgical Instrumentation: Scalpel handles, robotic surgical "wrists," biopsy punches, and endoscopic components.
Diagnostic & Life Support: Components for MRI scanners, housings for blood analyzers, and precision valves for ventilators.

Your Partner in Excellence: Medical Device Precision Machining Service at XY-GLOBAL

When it comes to human health, "close enough" is never enough. XY-GLOBAL provides a comprehensive medical device precision machining service designed to meet the most grueling technical specifications.We pride ourselves on our deep customization capabilities, turning complex sketches into high-performance medical tools.

At XY-GLOBAL, we don't just "cut metal"; we engineer comprehensive solutions through a facility optimized for the medical industry's rigors, featuring a massive capacity of 100+ advanced machines and the ability to achieve extreme precision with tolerances as tight as ±0.005mm.

Our service eliminates entry barriers with a 0 MOQ requirement—ideal for R&D and clinical trials—while ensuring surface perfection through 20+ specialized treatments like electropolishing and passivation. Backed by over 15 years of experience, our team provides 24/7 engineering support and expert DFM assistance to guarantee your project scales seamlessly from concept to high-precision reality.

Commitment to Quality for Every Part

Dual Certification: ISO 13485:2016 and ISO 9001:2015.
Advanced Metrology: Using ZEISS and Hexagon CMM systems, we verify accuracy down to 1.0 μm.
100% Inspection: We perform full checks on all critical dimensions to ensure zero-defect delivery.
Clean Production: Production takes place in a dedicated sterile/dust-free workshop to prevent cross-contamination.
Rapid Turnaround: Fast prototyping and quick lead times to keep your project on schedule.

Case Study: The Bone Puncture Needle Challenge

One of our long-term clients in the orthopedic sector approached us with a significant headache. They were developing a high-end Bone Puncture Needle, a critical tool used for marrow aspiration, and they were hitting a wall.

The Background & Difficulty

The client had hopped through three different suppliers before finding us. The technical requirements were brutal:

Outer Diameter Tolerance: ±0.01 mm.
Coaxiality: ≤0.03 mm.
Inner Wall Roughness: Ra ≤0.4 μm (essential to prevent cell damage during aspiration).

Previous suppliers struggled with the inner wall finish; their needles often had microscopic ridges that "caught" tissue. Furthermore, their sampling turnaround was over 6 weeks, stalling the client's progress.

The XY-GLOBAL Solution

We took this personally. Our engineers developed a custom tooling strategy. Using our Swiss-type CNC lathes, we implemented a specialized internal honing process to meet the Ra ≤0.4 μm requirement. We also designed a customized jig to ensure the needle remained perfectly centered during the long-hole drilling process, securing the difficult coaxiality.

The Result

The results were transformative: we achieved a consistent inner wall finish of Ra 0.32 μm and delivered the first qualified samples in just 10 days, a fraction of the previous wait time. This efficiency allowed the client to move into mass production immediately, and to date, we have delivered over 10,000 units with a 99.8% pass rate. As the client’s lead engineer noted, XY-GLOBAL didn't just manufacture a component; we provided the technical breakthrough that gave them their product launch back.

Medical Device Precision Machining FAQ

Q: Can you handle the documentation required for FDA approval?

A: Absolutely. As an ISO 13485 certified facility, we provide full material certifications, inspection reports, and process traceability documents necessary for your regulatory filings.

Q: Why is 5-axis machining better for medical parts?

A: It allows for the creation of complex, organic shapes (like a hip joint) in a single setup. This reduces the error that occurs when moving a part between different machines and improves surface finish.

Q: What is the typical lead time for a medical prototype?

A: For most medical device CNC machining projects, we can provide a prototype within 3–7 days, depending on complexity and material availability.

Q: Do you offer 100% inspection for large orders?

A: Yes. For medical clients, we routinely perform 100% inspection on all "critical-to-quality" dimensions using our Zeiss CMM and OGP optical systems to ensure total safety.
